Blind Units

Glenny AccuView

Integral Blind IG Units

The highest quality Integral Blind IG Units available - at a price that opens up the world of possibilities! No longer just a "niche" solution to observation, sound, light, and disinfection control in buildings, Glenny has engineered a specialty product line that not only leads the pack, but defines a new expanded market for Integral Blind IG Units. A comprehensive five year warranty is our commitment to your satisfaction.

SL20A Between the Glass Blinds - Tilt Only

The SL20A incorporates a rugged rotary rare earth magnet assembly. The patented assembly is a magnetically coupled, gear driven tilt mechanism to operate the blinds. The blind can be operated with an externally mounted turn-knob or with a blind wand. Motorization options are also available.

Slats are made of aluminum alloy 6010-T8, 12.5mm (.500") x .008" and are painted with a low emissivity paint with a polyester ultraviolet high resistant finish. A 3⁄4" air gap is needed for the blind to operate.

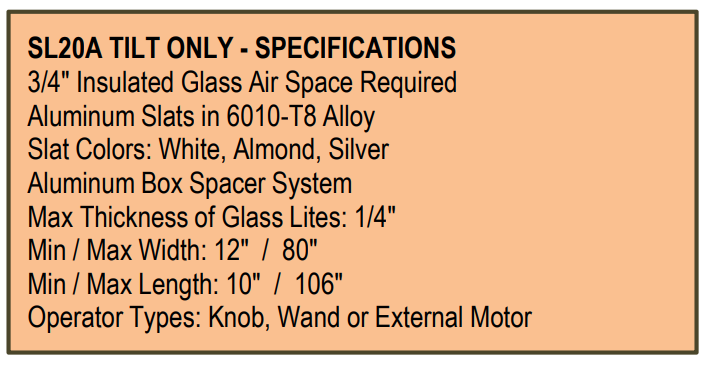

Tilt Only Specifications

SL20C Between the Glass Blinds - Lift & Tilt

The SL20C incorporates a rugged rotary rare earth magnet assembly. The patented assembly is a magnetically coupled, gear driven mechanism to lift or tilt the blinds. The blind is operated using a cord loop and loop tensioner system. The cord loop rotates the external magnet, which drives an internal magnet with which it is coupled. Moving the cord loop down on the right or left outer magnet assembly will respectively lower or raise the blind. Motorization options are also available.

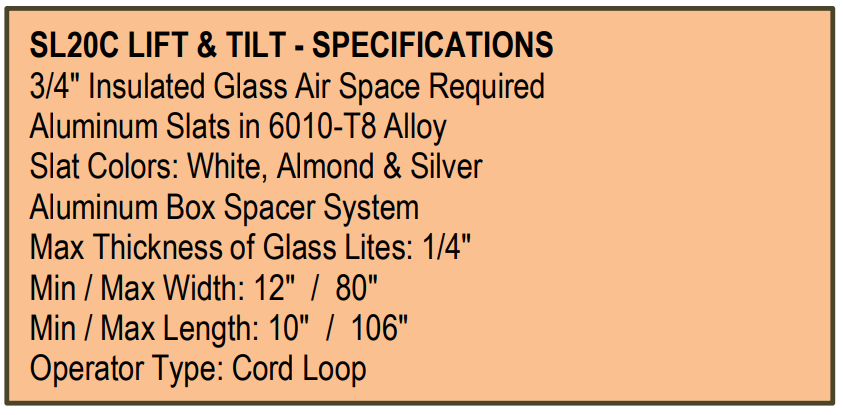

lift and Tilt specificaitons

Resources

Blind Unit 5 Year Limited Warranty
Blind Unit Restrictions
SL Series Full Specifications

For more information, contact your customer service rep here.
